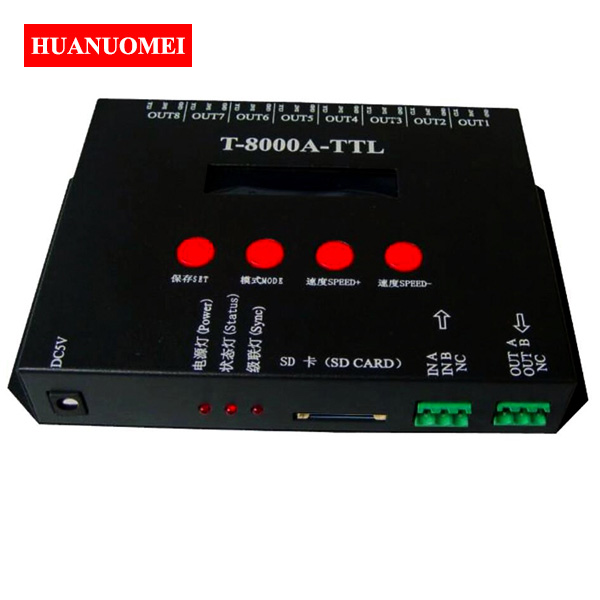

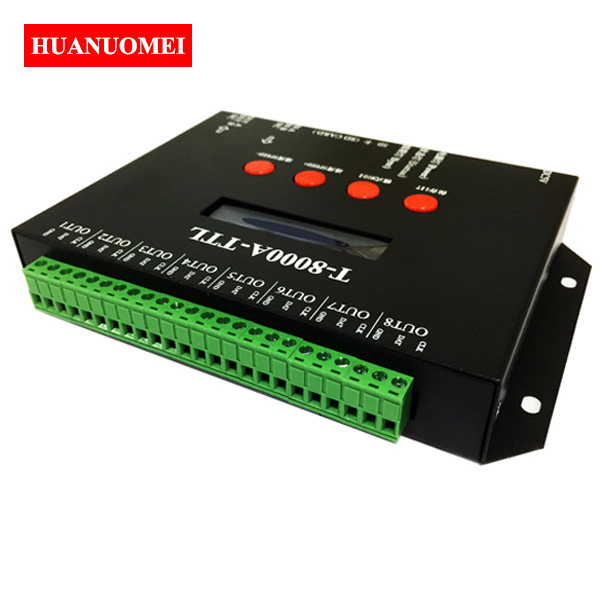

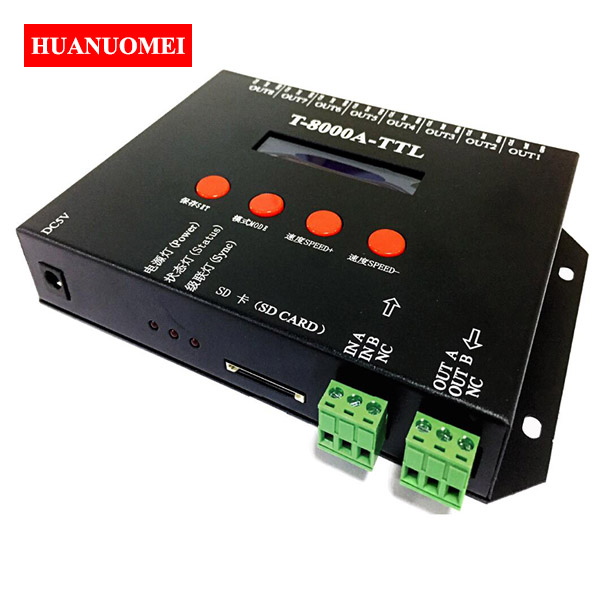

T-8000A LED SD Card Pixel Controller 8Ports Off-line LED Controller Dimmer SPI(TTL) Signal Output Max 1024*8ports RGB LED Driver

  • Product Item:T-8000A
  • Category:LED Pixel Controller
  • Max Pixel Number: 8192pixels
  • Working Method: SD Card Programmable Controller
  • Working Voltage: DC5V input
  • SD Card: 256MB sd card
  • Product Manual:T-8000A SD Card Programmable LED Pixel Controller,SPI signal output,8Ports,Max Support 8192Pixels,Work Voltage:DC5V,Support WS2801,LPD6803,WS2811,WS2812,WS2812B,WS2813,SK6812,UCS1903,SM16703.
BASIC INFO

T-8000A LED SD Card Pixel Controller 8Ports Off-line LED Controller Dimmer SPI(TTL) Signal Output Max 1024*8ports RGB LED Driver


8ports offline T-8000A manual

T-8000A system features

32—256 Gray, Gamma correction procession software

Combined with video encoding and broadcasting software LedEdit , support rules and specific-shaped handle, and other points, line lights source

Eight-port output,port 512/1024 lights

Playback content stored in SD card, can stand-alone play, also multiple cascade

NOTE:T-8000A port 512 lights, the playback speed of up to 30 frames / sec, the port more than 512 lights, the frame rate with the increase in the number of lights automatically reduced.

When multiple cascade, only the first controller buttons work, followed by sub-control buttons are automatically shielded, at this point can adjust playback file and speed through the first controller

NOTE:At this time the first controller's buttons can control all sub-control keys


Support chips:

Support chips

LedEdit corresponding model

Single one support lights

Remarks

LPD6803,D705,1101,6909,6912

T-8000C-6803

8192pixels


LPD8806,LPD8809

T-8000C-8806

8192 pixels


TM1803,TM1804,TM1809,TM1812

T-8000C-TM

8192 pixels

TM1804 and TM1809 are divided into high and low speed

DMX512

T-8000C-DMX

1360/4096 pixels

Compatible with standard DMX512 agreement

WS2801,WS2803

T-8000C-WS

8192 pixels


TLS3001,TLS3002

T-8000C-TLS

8192 pixels


P9813

T-8000C-P9813

8192 pixels


SM16715

T-8000C-SM16715

8192 pixels


SM16716

T-8000C-SM16716

8192 pixels


BS0815

T-8000C-0815

8192 pixels



NOTE:When multiple cascade, only the first controller buttons work, followed by sub-control buttons are automatically shielded, at this point can adjust playback file and speed through the first controller

NOTE:At this time the first controller's buttons can control all sub-control keys


Special parameters:

Memory card:

Type:SD card(if control more lights, suggest using high-speed SD card)

Capacity:256MB -2GB

Format:FAT format

Store file:*.led

Physical parameters:

Temperature:-20-85

Power supply:DC 5V input

Power:4W
