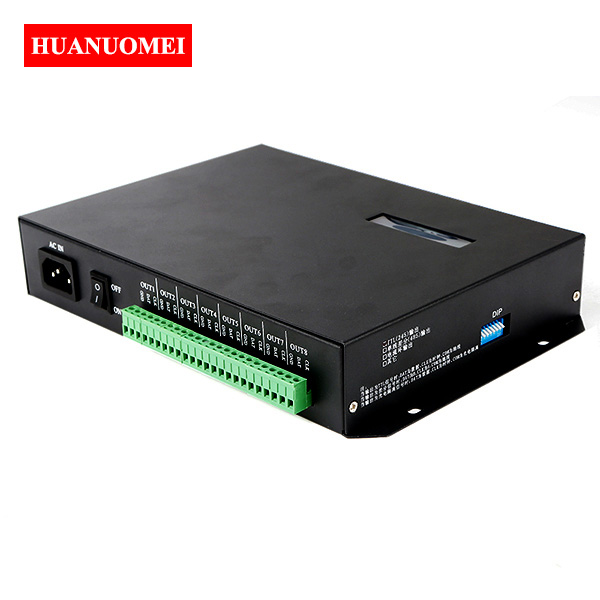

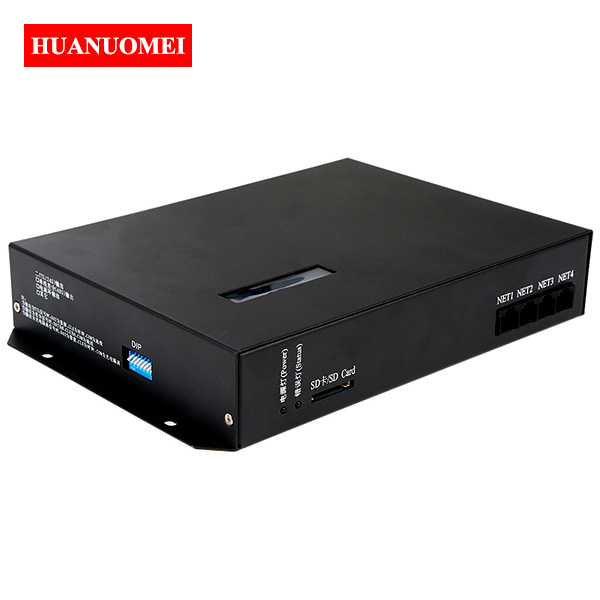

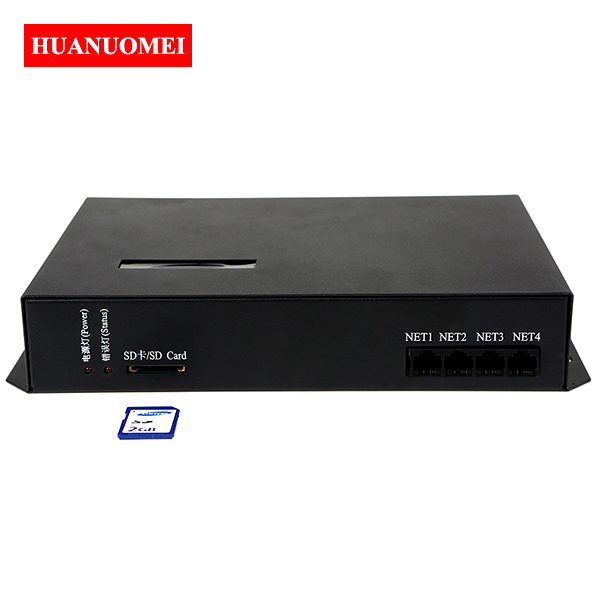

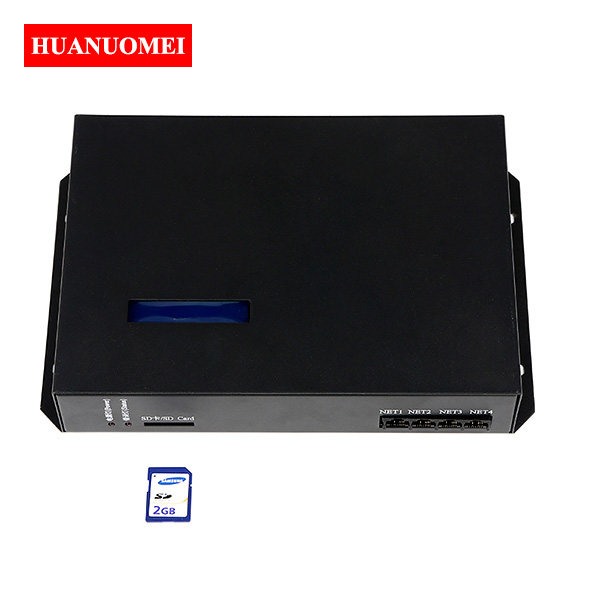

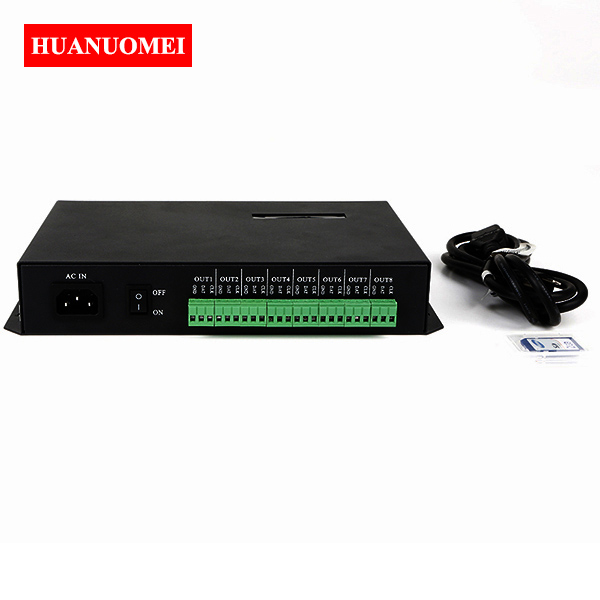

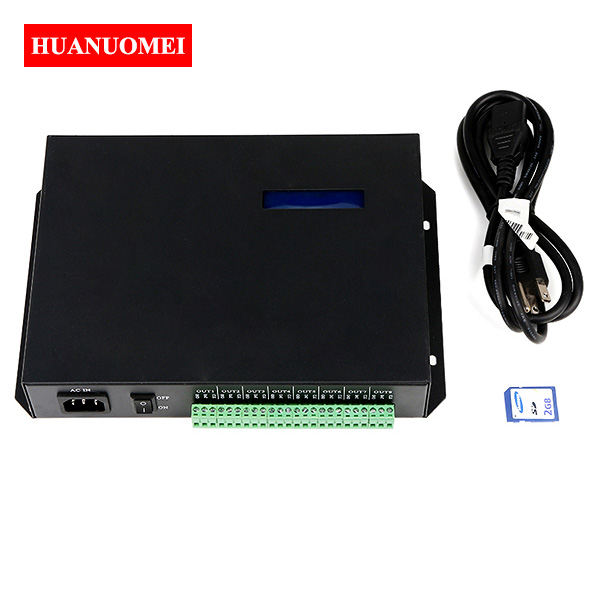

T-200K SD Card Online LED Pixel Controller RGB LED Dimmer Programmable LED Driver AC90-260V Support WS2811 WS2801 WS2812B WS2813

1. T-200k System features

1.32~256 Gray level,Support software Gamma correction.

2. Support the rules and special-shaped handle.

3. 8 ports output,one port can support 512-1024 pixels.

4. offline (SD card) control and on-line control can be combined using multiple controllers, the contents of the offline control program stored in the SD card.

5. Compatible with single line or double line chips.

6. If the controller to the lamps distance can choose photoelectric isolated transmission and as far as several distances of up to 200-300 M

Note:T-200K Off-line(SD Card) control need to be the first master controller insert SD card.

T-200K in the PC software compatible with T-100K-B

NOTE:

1. When T-200k controller control less than 512 lamps the frame rate can reach 30fps. When T-200k control more than 512 lamps and less than 2048 lamps the frame rate will slow down automatically.

2. T-200k must use the new software LedEdit 2013.

3. After you put the order, if you need the LedEdit2013 software, please contact to us, then we will send it to you free. And also we can teach you how to use the software if you don't know how to use it.

2. Support Chips:

NOTE:if chip is 256 grade gray level and Single-line IC choose .When programming choice high speed mode and one interface controls 1024 lamps the play speed can reach 30 frames/s. Double-line IC or single-line IC with low speed , one interface controls 512 lamps the play speed can reach 30 frames/s.

4.The meaning of flag

TTL signal(245 signal):

NOTE:According to TTL signal output,Ground of the controller must be connected to the lamprsquos ground.
