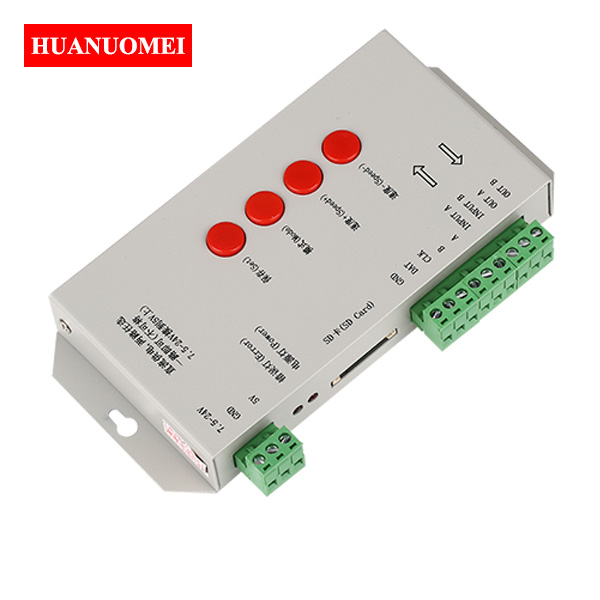

T-1000S SD Card LED Pixel Controller SPI Signal Programmable Dimmer DC5-24V Support WS2801 LPD6803 WS2811 UCS1903 SK6812 WS2813 etc.
I. T-1000S System features
1. 32—256 grade Gray level,Support software Gamma correction.
2. Support the rules and special-shaped handle.
3. 1 port output,can support 2048 lamp pixels.
4. SD Card control,offline control, the contents of the line control program stored in the SD card..
5. T-1000S store 16 files max, copy the files into SD card in turns.
6. Files be stored in the SD named as:00_1.led, 01_1.led, 02_1.led.
7. Compatible with single line or double line chips. Do not need to connect CLK line when use single line led fixture.
NOTE:
1. The model T-1000S with one port output, When it control 512 pixels the speed can reach 30fps, more than 512 pixels, the frame speed will be slow down automatically
2. T-1000S must use the new software LedEdit 2013.
3. After you put the order, if you need the LedEdit2013 software, please contact to us, then we will send it to you free. And also we can teach you how to use the software if you don't know how to use it.
II. Support chips:
|
Support IC type |
Module in LedEdit software |
Pixel numbers |
Remark |
|
LPD6803,D705,1101,6909, 6912 |
T-1000-6803 |
2048 pixel
|
|
|
LPD8806,LPD8809 |
T-1000-8806 |
2048 pixel |
|
|
TM1803,TM1804,TM1809,TM1812 |
T-1000-TM |
2048 pixel |
TM1804 and TM1809 low speed and high speed |
|
TM1903TM1904TM1909TM1912 |
T-1000-TM19 |
2048 pixel |
|
|
UCS6909UCS6912UCS7009UCS5903 |
T-1000-UCS-32 |
2048 pixel |
|
|
UCS1903UCS1909UCS1912 |
T-1000-UCS-256 |
2048 pixel |
low speed and high speed |
|
UCS3903 |
T-1000-UCS-1024 |
2048 pixel |
|
|
DMX512 |
T-1000-DMX |
170/512 pixel |
Compatible DMX512 |
|
WS2801,WS2803 |
T-1000-WS |
2048 pixel |
|
|
WS2811 |
T-1000-WS2811 |
2048 pixel |
low speed and high speed |
|
DS189 |
T-1000-DS189 |
2048 pixel |
|
|
TLS3001,TLS3002TLS3008 |
T-1000-TLS |
* pixel |
|
|
P9813 |
T-1000-P9813 |
2048 pixel |
|
|
SM16715 |
T-1000-SM16715 |
2048 pixel |
low speed and high speed |
|
SM16716 |
T-1000-SM16716 |
2048 pixel |
|
|
BS0901,BS0902 |
T-1000-0901 |
2048 pixel |
|
|
BS0815 |
T-1000-0815 |
2048 pixel |
|

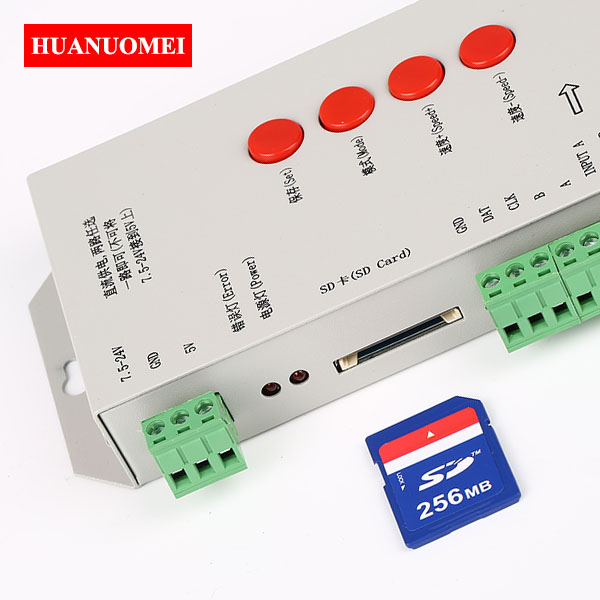

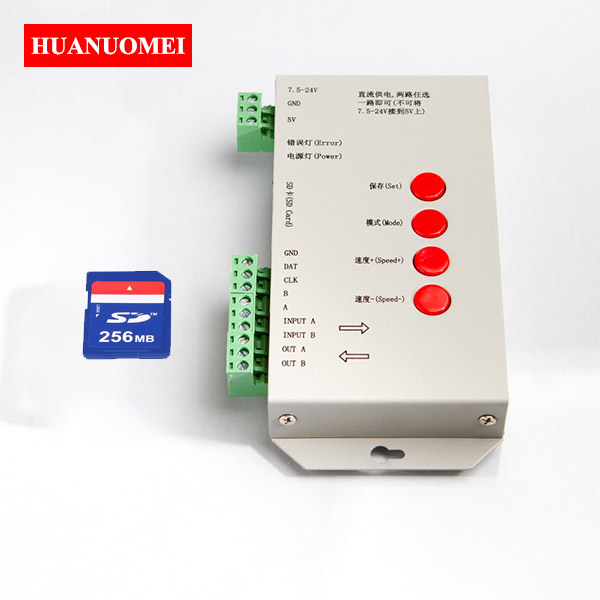

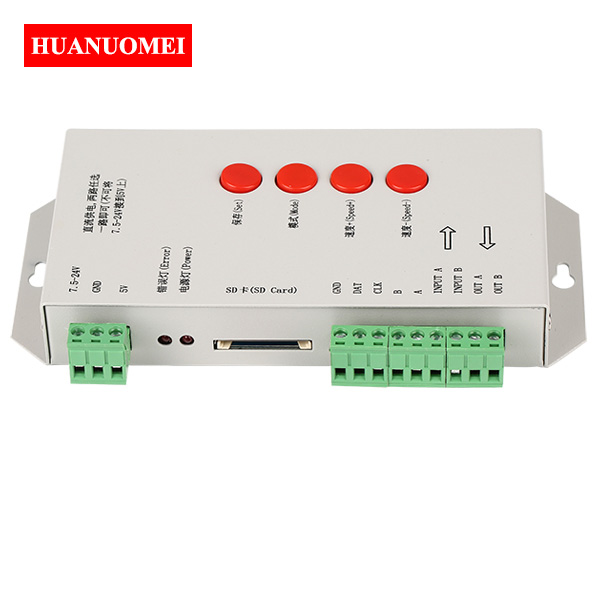

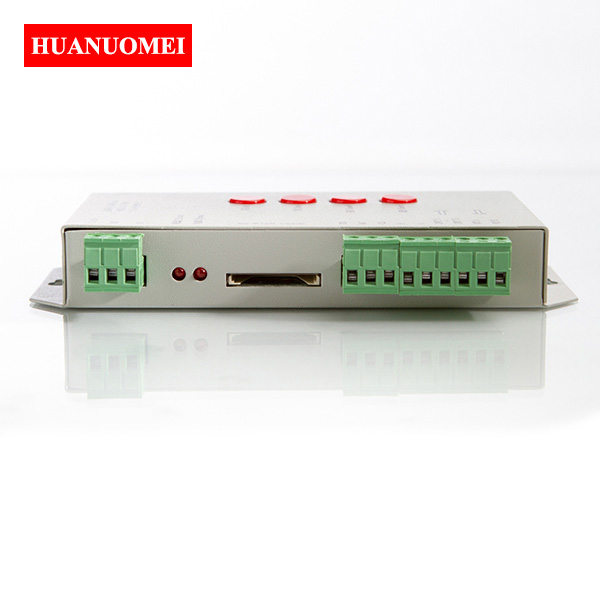

3. Connection diagram:
|
7.5V-24V |
DC power input, to provide two sets of power input, select a group can be. |
|
5V |
Power Ground. |
|
GND |
Error indicator |
|
ERROR |
Power LED |
|
POWER |
SD card slot |
|
SD CARD |
Output CLK |
|
CLK |
Output DATA |
|
DAT |
Signal Ground |
|
GND |
|
|
|
|
|
GND |
Signal Ground |

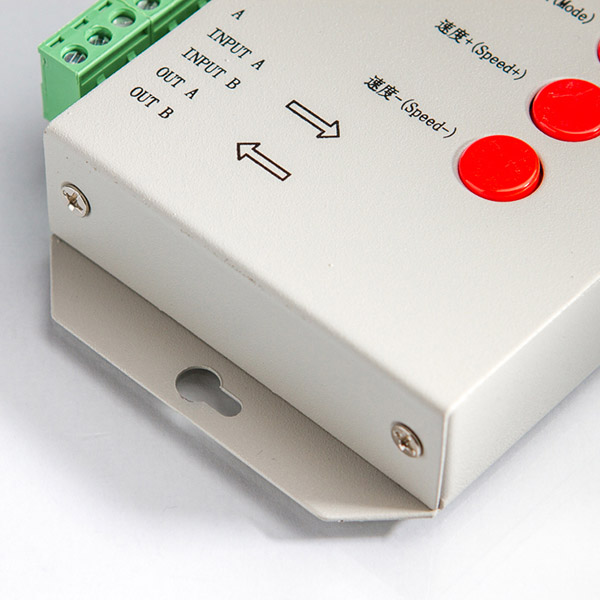

Regulatory function button:
|
SET |
Save Settings to save current settings file and the playback speed |
|
MODE |
Switch File |
|
SPEED+ |
Speed up the playback speed |
|
SPEED- |
Slow down the playback speed |
4. System architecture diagram:
Specific parameters:
Memory Card:
. Type: SD Card
. Capacity: 128MB-2GB
. File Format: FAT file format
. Store files: *.led
Physical parameters:
. Weight:0.3kg
. Size:122mm*67mm*25mm
. Temperature :-40-85 Degree
. Volgate: DC5V / DC7.5-24V
. Power:3W
