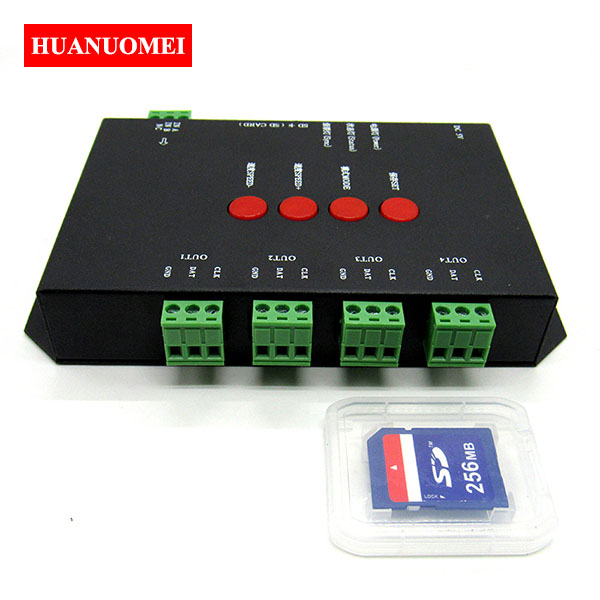

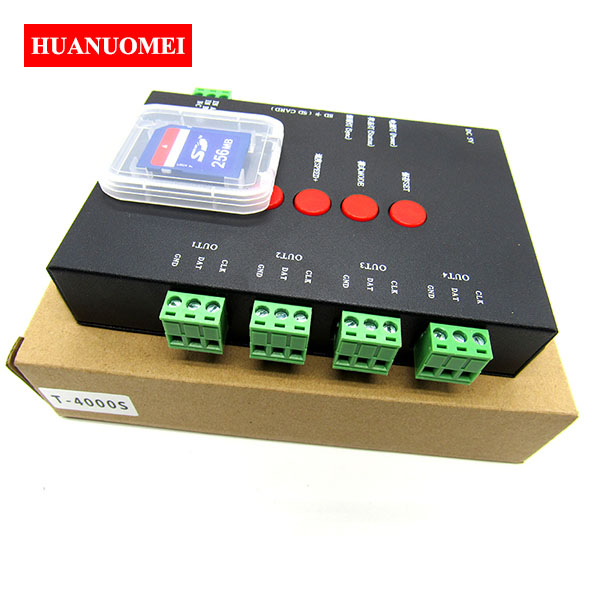

T-4000S SD Card LED Pixel Controller T-4000 Full Color WS2811 WS2812B SK6812 WS2813 RGB LED Controller Dimmer 4Ports*1024Pixels
1. T-4000 System characteristics
- 32~256 Gray level,Support software Gamma correction.
- Support the rules and special-shaped handle.
- Four-port output,every port can support 512-1024 pixels.
- Off-line(SD Card) control, play back content stored in the SD card.
- The controller Can save up to 16 files ,copy the file into SD card in order.
- The file in SD card must be named: 00_1.led, 01_1.led, 02_1.led.......
- Compatible with single and dual IC, if you control a single line IC LED lights, without being connected to the CLK line.
NOTE:
1. When T-4000 controller control less than 512 lamps the frame rate can reach 30fps. When T-1000 controls more than 512 lamps and less than 1024 lamps the frame rate will slow down automatically.
2. In the 2014 production version of the T-4000to add a Chinese flag on the surface, you must use the new software
3. After you put the order, if you need the LedEdit2013 software, please contact to us, then we will send it to you free. And also we can teach you how to use the software if you don't know how to use it.
2.Support chips:
|
Chip type |
Software code & Controller type |
Lamps/(MAX) |
Note |
|
LPD6803,D705,1101,6909, 6912 |
T-4000-6803 |
4096 |
|
|
LPD8806,LPD8809 |
T-4000-8806 |
4096 |
|
|
TM1803,TM1804,TM1809,TM1812 |
T-4000-TM |
4096 |
TM1804 and TM1809 are divided into high speed and low speed |
|
TM1903,TM1904,TM1909,TM1912 |
T-4000-TM19 |
4096 |
|
|
UCS6909,UCS6912,UCS7009,UCS5903 |
T-4000-UCS-32 |
4096 |
|
|
UCS1903,UCS1909,UCS1912 |
T-4000-UCS-256 |
4096 |
divided into high speed and low speed |
|
UCS3903 |
T-4000-UCS-1024 |
4096 |
|
|
DMX512 |
T-4000-DMX |
680/2048 |
Compatible with standard DMX512 |
|
WS2801,WS2803 |
T-4000-WS |
4096 |
|
|
WS2811 |
T-4000-WS2811 |
4096 |
divided into high speed and low speed |
|
DS189 |
T-4000-DS189 |
4096 |
|
|
TLS3001,TLS3002,TLS3008 |
T-4000-TLS |
---- |
|
|
P9813 |
T-4000-P9813 |
4096 |
|
|
SM16715 |
T-4000-SM16715 |
4096 |
divided into high speed and low speed |
|
SM16716 |
T-4000-SM16716 |
4096 |
|
|
BS0901,BS0902 |
T-4000-0901 |
4096 |
|
|
BS0815 |
T-4000-0815 |
4096 |
|

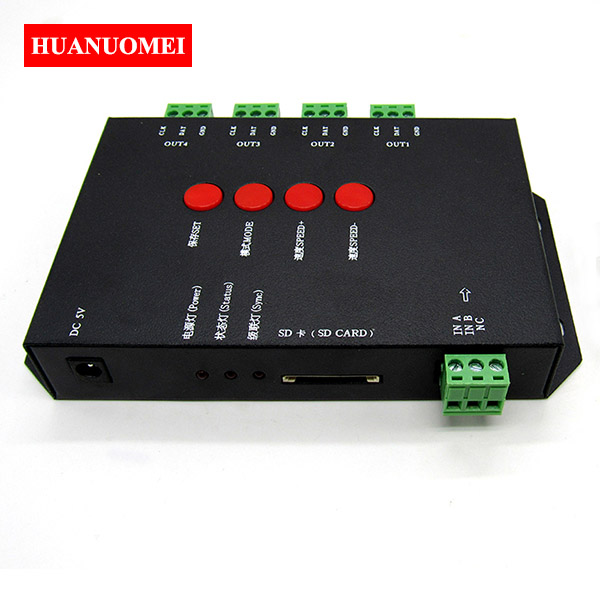

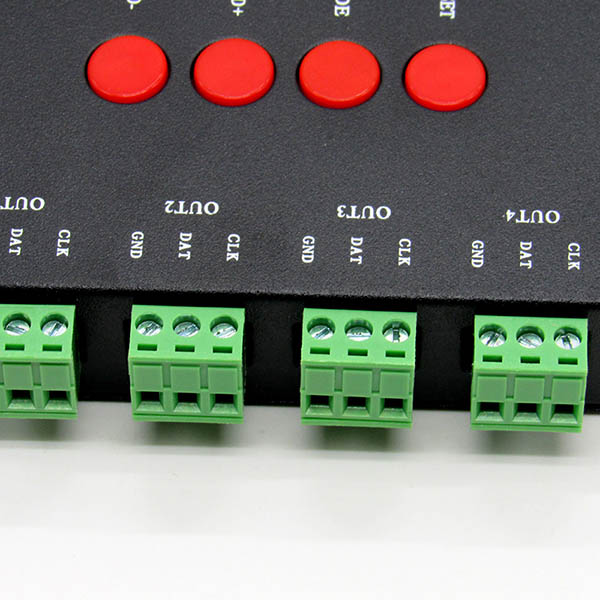

4. The meaning of flag
|
Button |
Meaning |
|
|
SET |
Save your adjust |
|
|
MODE |
Switch effect file |
|
|
SPEED+ |
Turn up speed |
Press the speed adjustment button the file will in turn play. |
|
SPEED- |
Turn down |
|
|
DC5V |
Power input |
|
POWER |
Power light |
|
ERROR |
Error indicator |
|
SD /SD CARD |
SD card slot |
|
CLK |
Clock line |
|
DAT |
Data line |
|
GND |
Ground wire |
NOTE:For the TTL(SPI) signal, the controller signal ground must connect to the LED ground wire directly.
