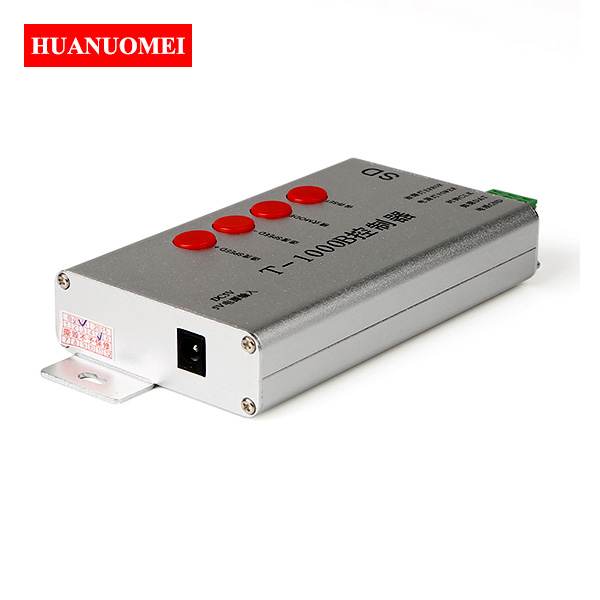

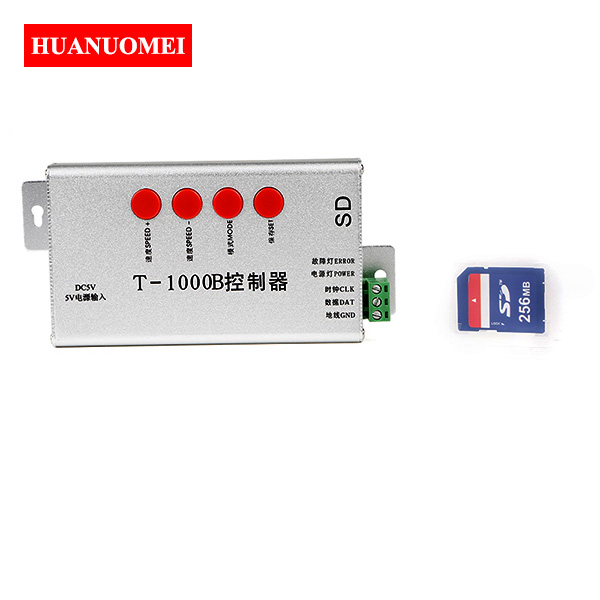

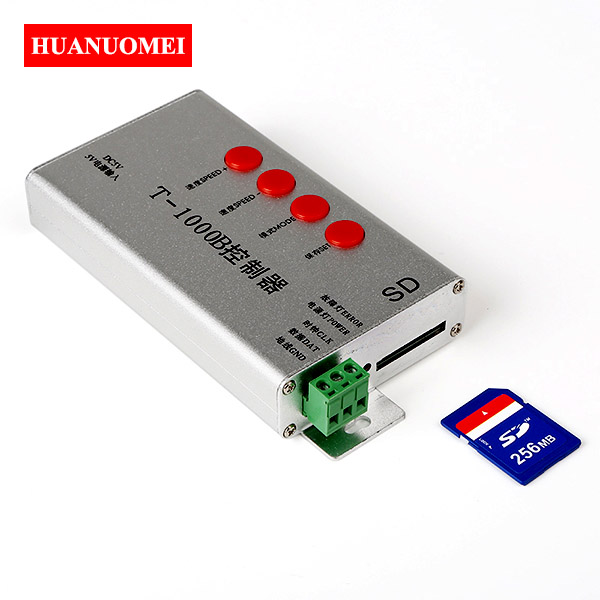

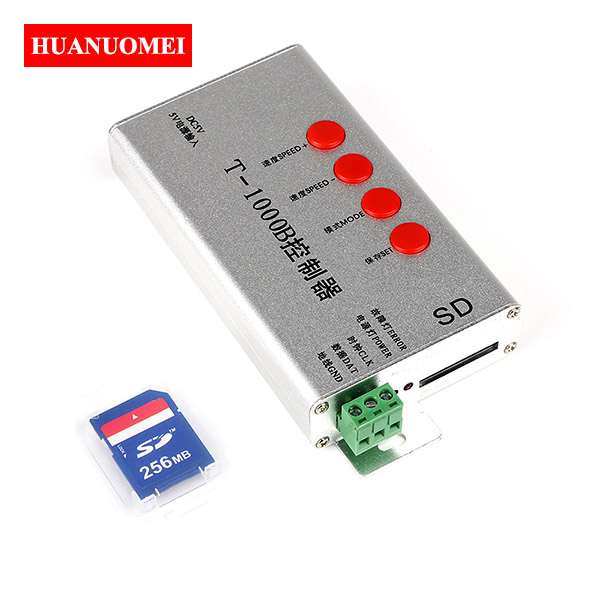

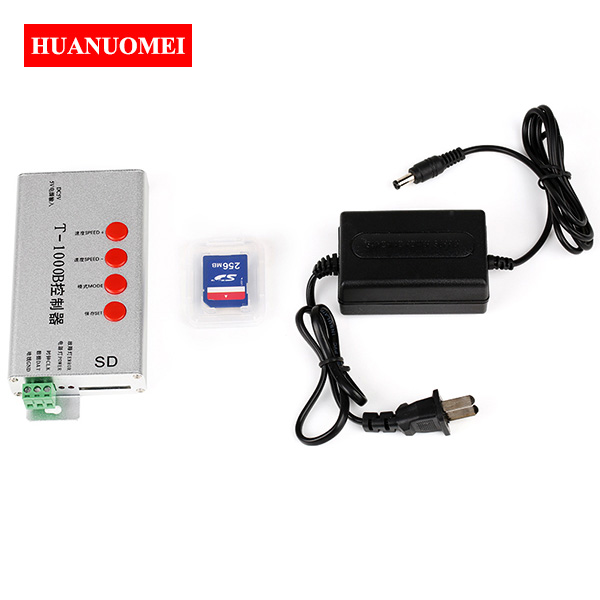

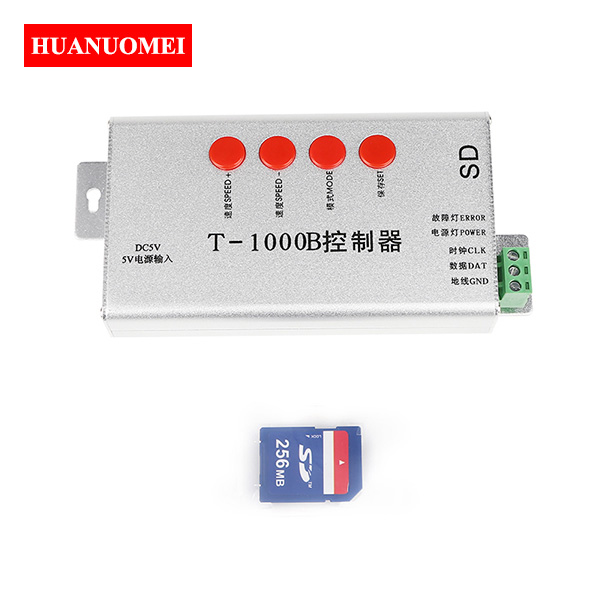

T-1000B SD Card LED Pixel Controller Programmable SPI Signal WS2811 WS2812 SK6812 WS2813 LPD6803 Digital Full Color LED Dimmer

  • Product Item:T-1000B
  • Category:LED Pixel Controller
  • Max Pixel Number: 2048pixels
  • Working Method: SD Card Programmable Controller
  • Working Voltage: DC5V input
  • SD Card: 256MB sd card
  • Product Manual:T-1000B SD Card Programmable LED Pixel Controller,Max Support:2048pixels,DC5~24V input,SPI signal output,Work Voltage:DC5V / DC7.5-24V,Support WS2801,LPD6803,WS2811,WS2812,WS2813,TM1804,LPD8806 etc.
BASIC INFO

T-1000B SD Card LED Pixel Controller Programmable SPI Signal WS2811 WS2812 SK6812 WS2813 LPD6803 Digital Full Color LED Dimmer


I. T-1000B System features

1. 32~256 grade Gray level,Support software Gamma correction.

2. Support the rules and special-shaped handle.

3. 1 port output,can support 2048 lamp pixels.

4. SD Card control,offline control,  the contents of the line control program stored in the SD card..

5. T-1000B store 16 files max, copy the files into SD card in turns.

6. Files be stored in the SD named as:00_1.led, 01_1.led, 02_1.led.

7. Compatible with single line or double line chips. Do not need to connect CLK line when use single line led fixture.


NOTE:

1. When T-1000B controller control less than 512 lamps the frame rate can reach 30fps. When T-1000B control more than 512 lamps and less than 2048 lamps the frame rate will slow down automatically.

2. T-1000B must use the new software LedEdit 2013.

3. After you put the order, if you need the LedEdit2013 software, please contact to us, then we will send it to you free. And also we can teach you how to use the software if you don't know how to use it.


II. Support chips:

Support IC type

Module in LedEdit software

Pixel numbers

Remark

LPD6803,D705,1101,6909, 6912

T-1000B-6803

2048 pixel



LPD8806,LPD8809

T-1000B-8806

2048 pixel


TM1803,TM1804,TM1809,TM1812

T-1000B-TM

2048 pixel

TM1804 and TM1809

low speed and high speed

TM1903TM1904TM1909TM1912

T-1000B-TM19

2048 pixel


UCS6909UCS6912UCS7009UCS5903

T-1000B-UCS-32

2048 pixel


UCS1903UCS1909UCS1912

T-1000B-UCS-256

2048 pixel

low speed and high speed

UCS3903

T-1000B-UCS-1024

2048 pixel


DMX512

T-1000B-DMX

170/512 pixel

Compatible DMX512

WS2801,WS2803

T-1000B-WS

2048 pixel


WS2811

T-1000B-WS2811

2048 pixel

low speed and high speed

DS189

T-1000B-DS189

2048 pixel


TLS3001,TLS3002TLS3008

T-1000B-TLS

* pixel


P9813

T-1000B-P9813

2048 pixel


SM16715

T-1000B-SM16715

2048 pixel

low speed and high speed

SM16716

T-1000B-SM16716

2048 pixel


BS0901,BS0902

T-1000B-0901

2048 pixel


BS0815

T-1000B-0815

2048 pixel



IV. Definition of printing:
