T-1000A LED Pixel Controller SD Card Full Color LED Controller DC5-24V Support WS2801 LPD6803 WS2811 WS2812B UCS1903 TM1804 etc.

  • Product Item:T-1000A
  • Category:LED Pixel Controller
  • Max Pixel Number: 2048pixels
  • Working Method: SD Card Programmable Controller
  • Working Voltage: DC5~24V input
  • SD Card: 256MB sd card
  • Product Manual:T-1000A SD Card Programmable LED Pixel Controller,Max Support:2048pixels,DC5~24V input,SPI signal output,Work Voltage:DC5V / DC7.5-24V,Support WS2801,LPD6803,WS2811,WS2812,WS2813,TM1804,LPD8806 etc.
BASIC INFO

T-1000A LED Pixel Controller SD Card Full Color LED Controller DC5-24V Support WS2801 LPD6803 WS2811 WS2812B UCS1903 TM1804 etc.



1. T-1000A System features

1. 32~256 Gray level,Support software Gamma correction.

2. Support the rules and special-shaped handle.

3. Single-port output,can support 1024 pixels.

4. Off-line(SD Card) control, play back content stored in the SD card.

NOTE:

1. When T-1000A controller control less than 512 lamps the frame rate can reach 30fps.

2. When T-1000A control more than 512 lamps and less than 1024lamps the frame rate will slow down automatically.

3. After you put the order, if you need the LedEdit2013 software, please contact to us, then we will send it to you free. And also we can teach you how to use the software if you don't know how to use it.


2. Support chips

Chip type


Software code  &

Controller type

Lamps/(MAX)

Note

LPD6803,D705,1101,6909, 6912

T-1000A-6803

1024


LPD8806,LPD8809

T-1000A-8806

1024


TM1803,TM1804,TM1809,TM1812

T-1000A-TM

1024

TM1804 and TM1809 are divided into high and low

TM1903,TM1904,TM1909,TM1912

T-1000A-TM19

1024


UCS6909,UCS6912,UCS7009,UCS5903

T-1000A-UCS-32

1024


UCS1903,UCS1909,UCS1912

T-1000A-UCS-256

1024

Divided into high speed and low speed

UCS3903

T-1000A-UCS-1024

1024


WS2801,WS2803

T-1000A-WS

1024


WS2811

T-1000A-WS2811

1024

Divided into high speed and low speed

DS189

T-1000A-DS189

1024


P9813

T-1000A-P9813

1024


SM16715

T-1000A-SM16715

1024

Divided into high speed and low speed

SM16716

T-1000A-SM16716

1024

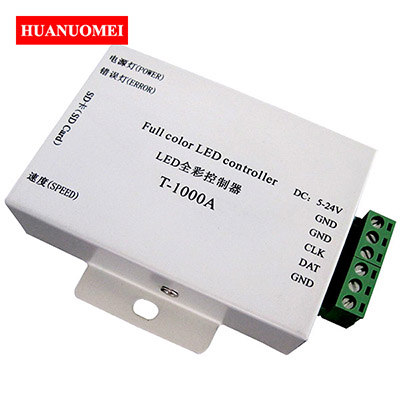

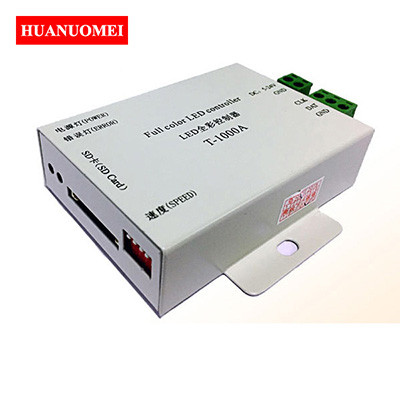

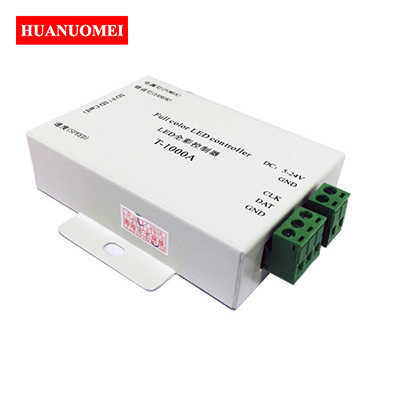

3. Definition of printing:

POWER

POWER LIGHT

DC5V~24V

Power adapter DC 5 V-24V input

SD CARD

SD card slot



SPEED

Adjust speed

CLK

Clock signal


DAT

Data signal


GND

Signal ground


GND

NOTE:For the TTL(SPI) signal, the controller signal ground must connect to the LED ground directly.
