24V 60mm 12LEDs 18LEDs RGB Pixel LED Module Light UCS1903 5050 SMD Amusement Park Ride Lamp WS2811 Addressable Digital Outdoor Waterproof IP67

  • Product Item:HNM-G60mm-12LEDs/18LEDs-UCS1903-24V
  • Category:60mm LED Pixel Light
  • Diameter:60mm
  • IC Type:UCS1903
  • LED Qty:12LEDs or 18LEDs
  • Color:Digital RGB Full Color
  • Product Manual:60mm LED Pixel Light,60mm Pixels,60mm 12LEDs,60mm 18LEDs,LED Module,60mm LED Module,LED Pixel Light
BASIC INFO

24V 60mm 12LEDs 18LEDs RGB Pixel LED Module Light UCS1903 5050 SMD Amusement Park Ride Lamp WS2811 Addressable Digital Outdoor Waterproof IP67


Description:

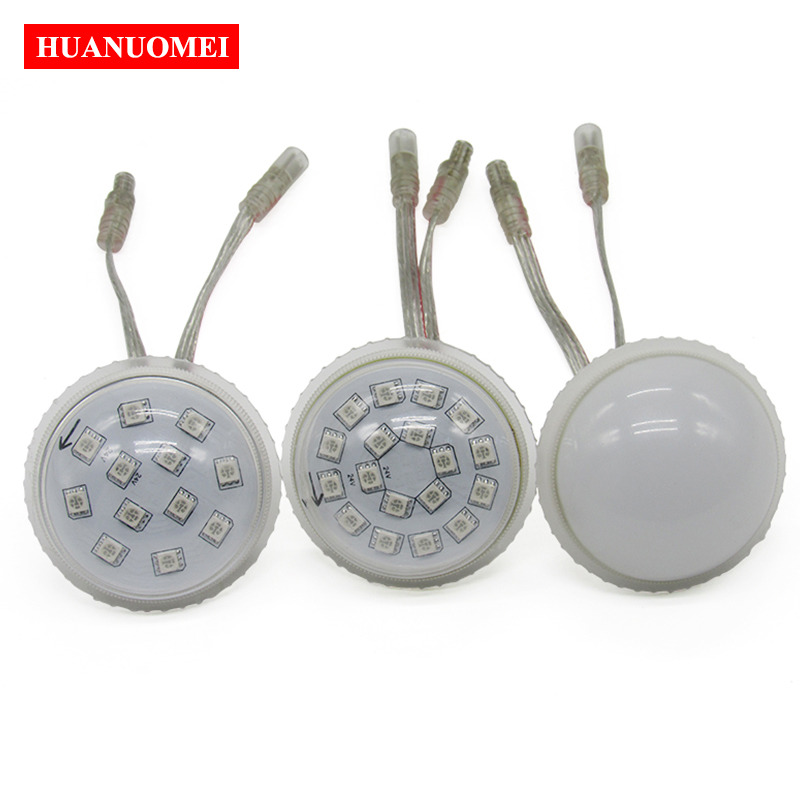

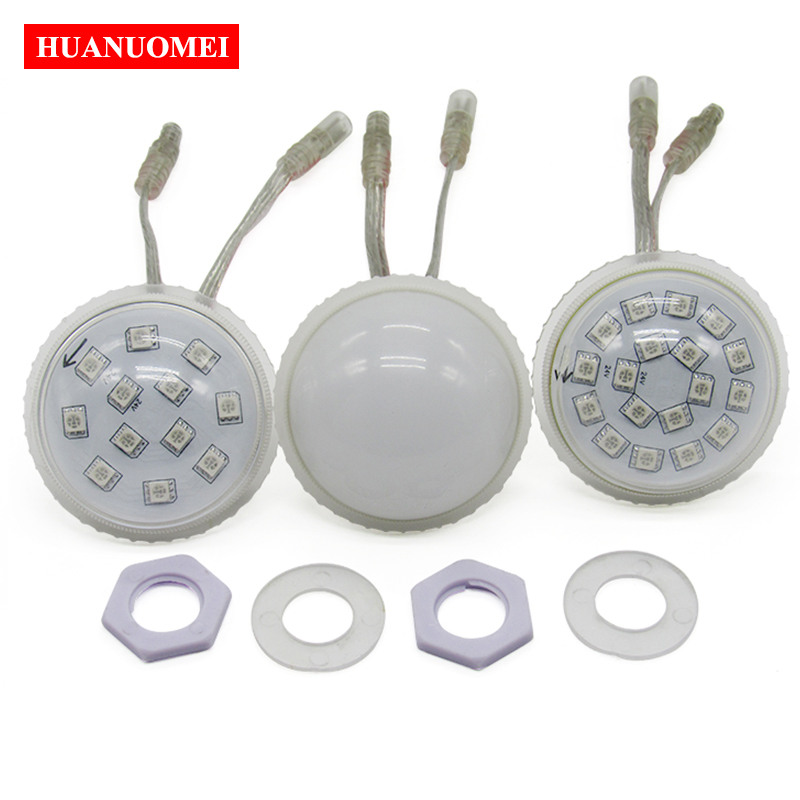

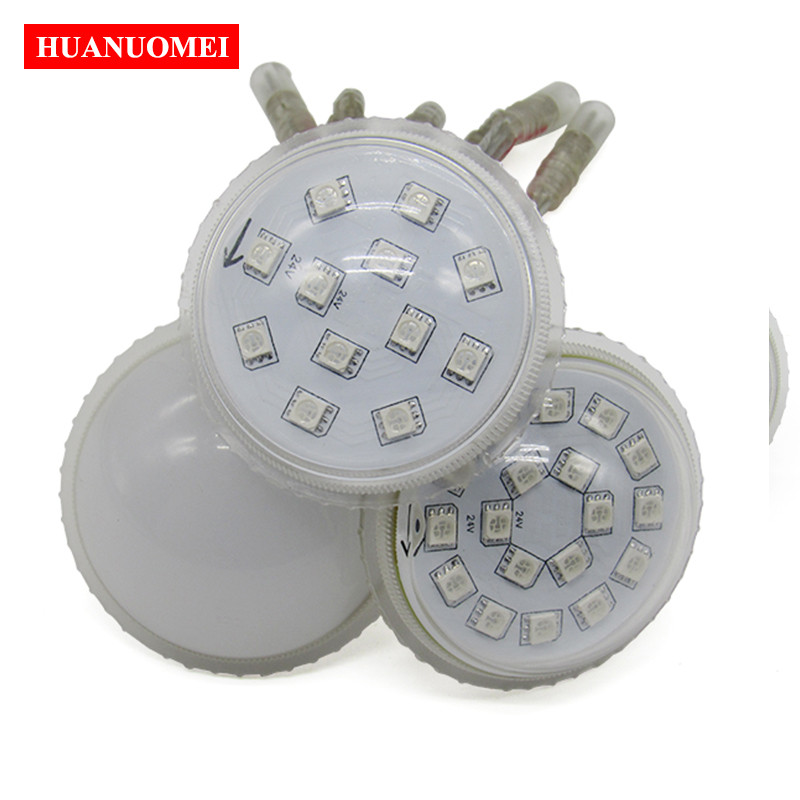

1. 60mm rgb pixel light is combinated by plastic housing, the PCB board and 3-pins waterproof connector (high temperature-esistant, cold-resistant UV-resistant), 12pcs/18pcs 5050 RGB SMD LED, 1pcs ucs1903 IC. UCS1903 can use the same led program as WS2811.


2. 60mm rgb led pixel light is made by epistar chip with high brightness,  low voltage, rich colors, energy conservation & environmental protection, strong stability, long lifespan and little luminous decay.


3. 60mm rgb led pixel module need work with external led pixel controller, can realize RGB colorful gradient, jump, full color scanning,chasing, running water, heap up and horse racing, scan results, many kind effects. Depending on the installation of different ways,different colors can be changed in the composition of characters,patterns,and other dynamic effects. And also can make a matrix pixel display ,backlights which can show ad picture or play video. These pixel lights can DIY program and effects by led software.


4. This product widely used in building contour, hotels, building floor lighting, KTV entertainment, large shopping malls outside wall, Hotels, Bars, Discos, square street, outdoor AD signs, Logo, interior lighting and other places.

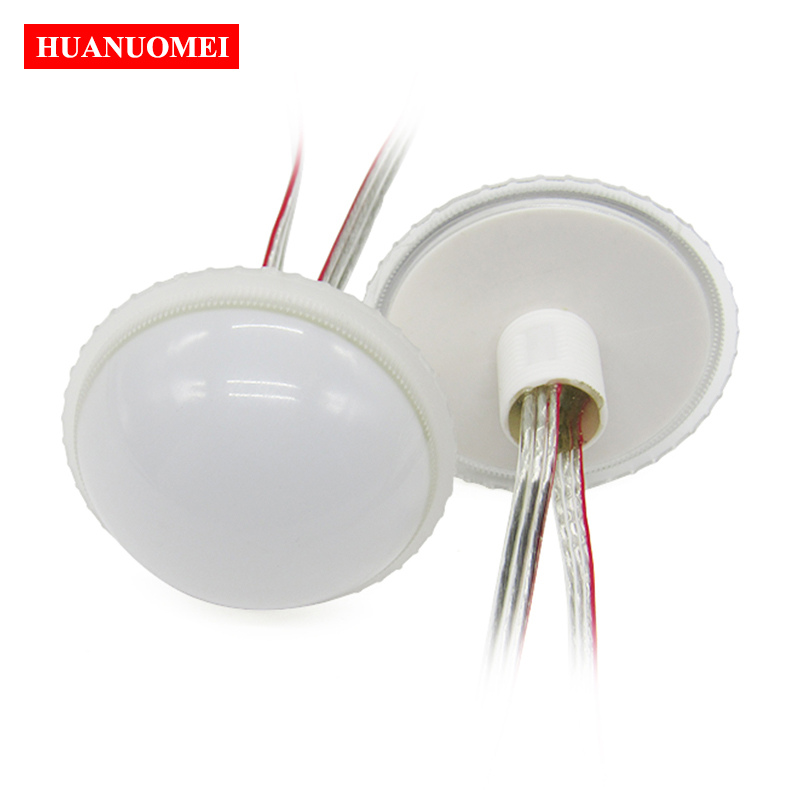

5. This product has the advantages of convenient installation, firm and stable, product unique screw directly twisted up, let the products much more fixed.


6. The products can be cascaded 20PCS , non-super-tandem. Thickness of the power cord should be based on the actual maximum current, the product power, cabling length (recommended no more than 5 meters) and a low pressure drop depending on the transmission line.


Specification:

Part No.

HNM-G60mm-UCS1903-24V

IC Type

UCS1903 (can use the same led program as ws2811)

Emitting Color

digital full rgb color, 24bit, 256gray scale

LED Qty

12pcs/18pcs 5050 SMD RGB LED chip

Working Voltage

DC24V input

Max Power

12LEDs--->2.88W,18LEDs--->4.32W

Max Current

100MA

Driver Method

Constant current circuit

Dimension

Φ60mm (diameter 60mm)

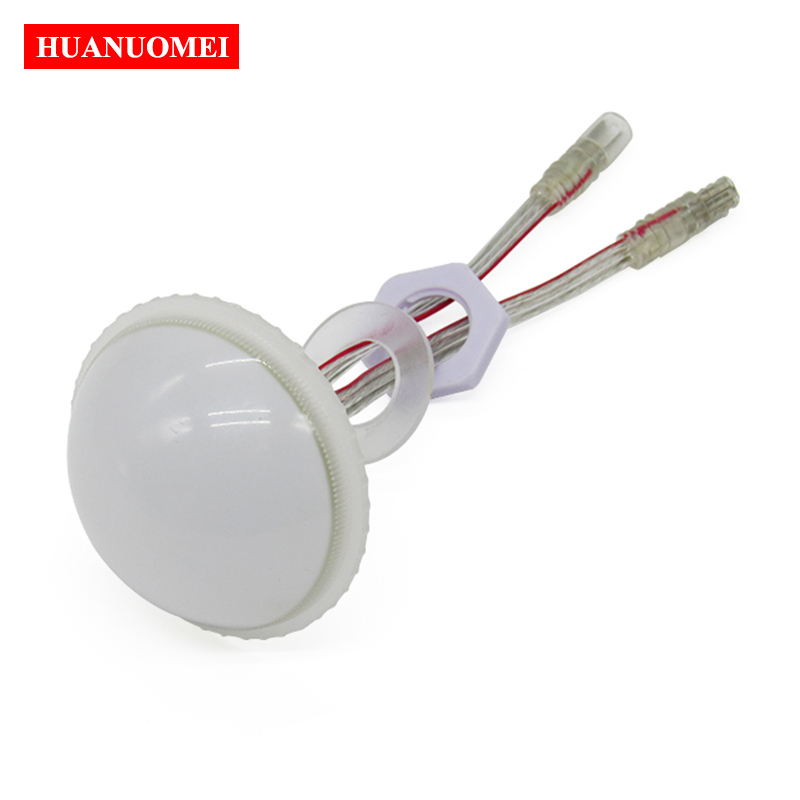

Fixed way

20mm diameter open hole

Standard connection

each pixel with 3pin 9mm waterproof connector

Standard wire length

15cm (150mm)

Housing cover feauter

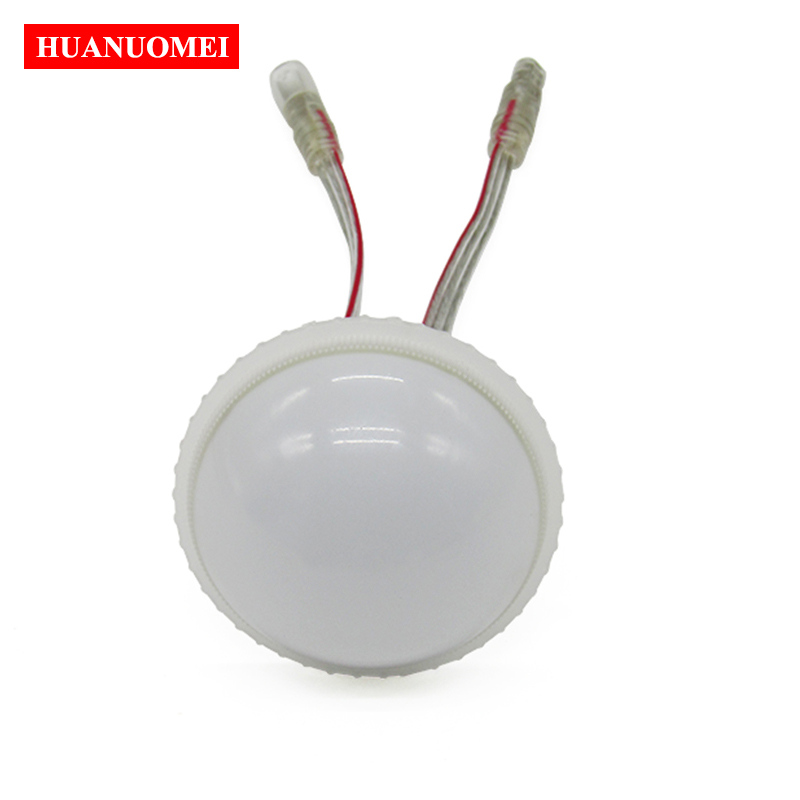

Transparent cover/Milky Cover

Protection Level

Waterproof IP68

Lifespan

≥50000 hours

Viewing Angle

≥140°c

Warranty

2years

Certification

CE & RoHS

Working Temperature

-40 ~50°c

Store Temperature

-50 ~60°c

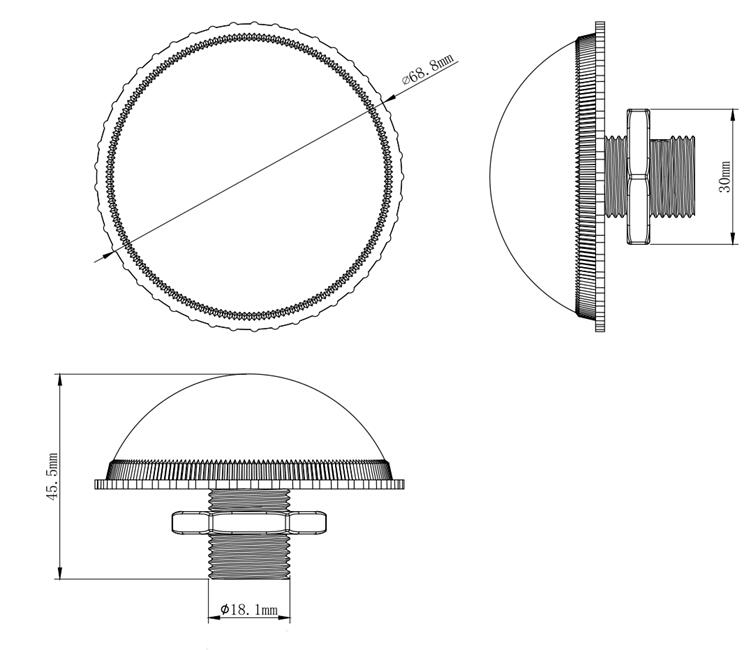

Product Size:
