24V 60mm 18LEDs UCS1903 LED Module Light 5050 SMD RGB Amusement Ride Pixel Lamp Outdoor TV Sign Programmable Bulb Waterproof IP67

Description:

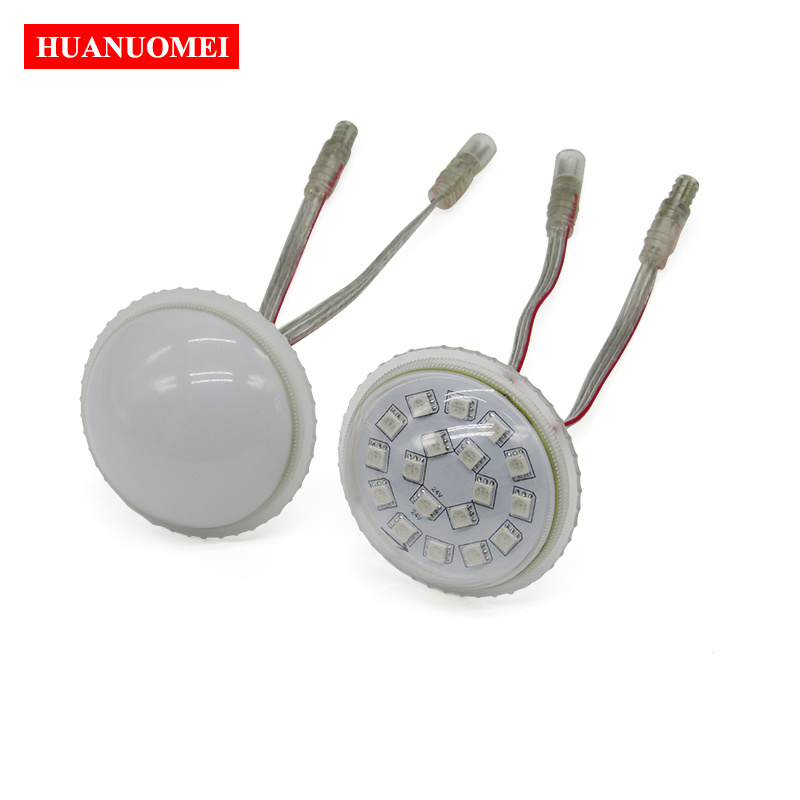

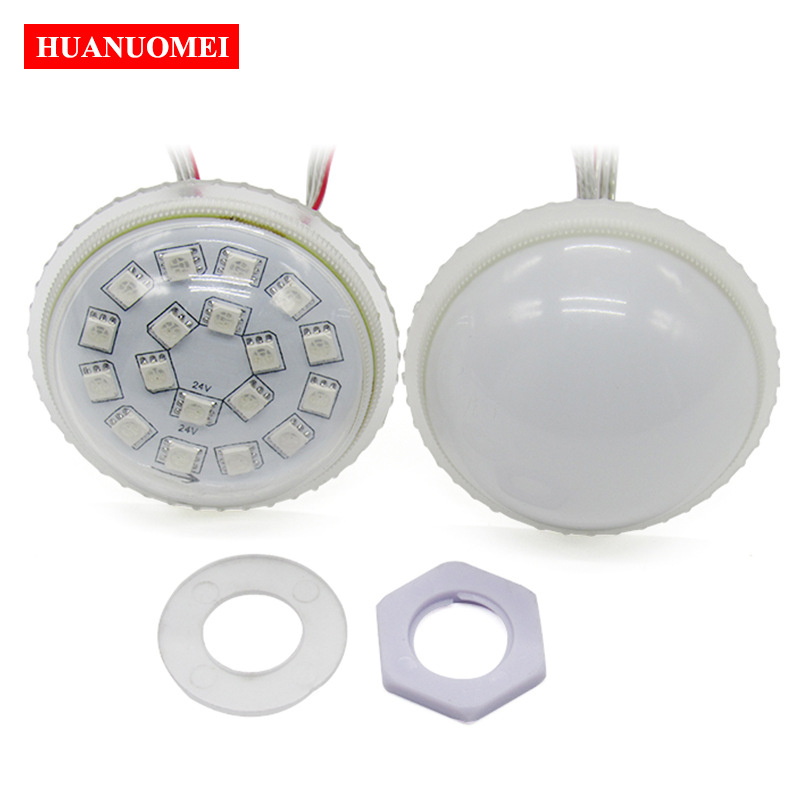

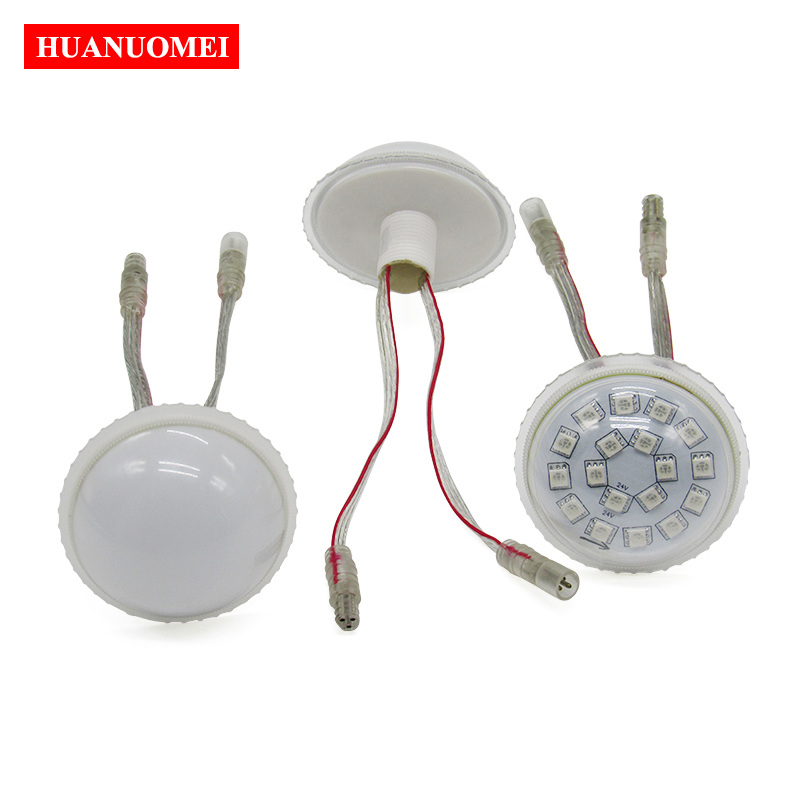

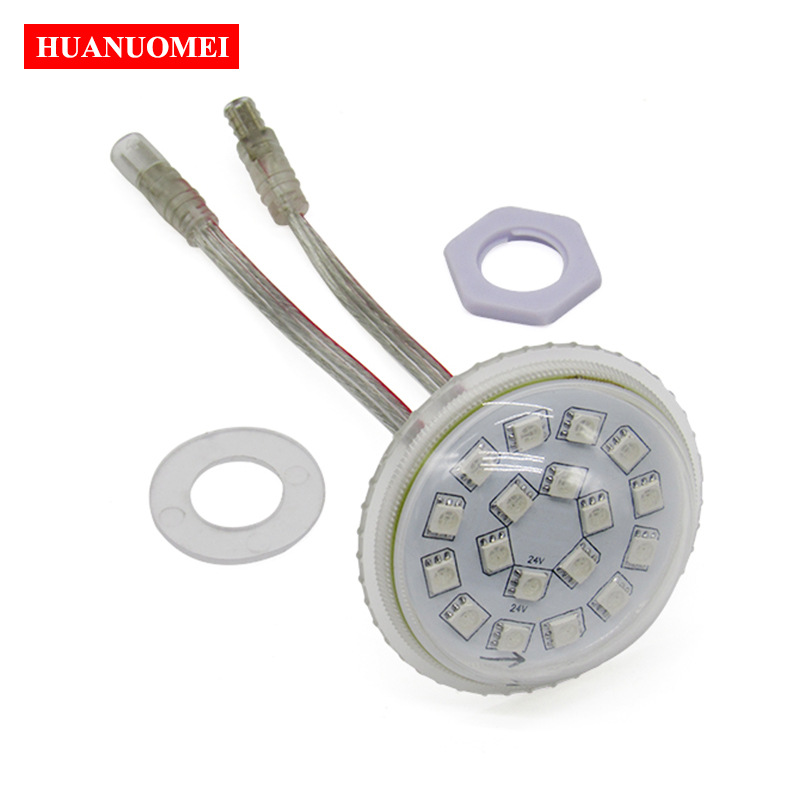

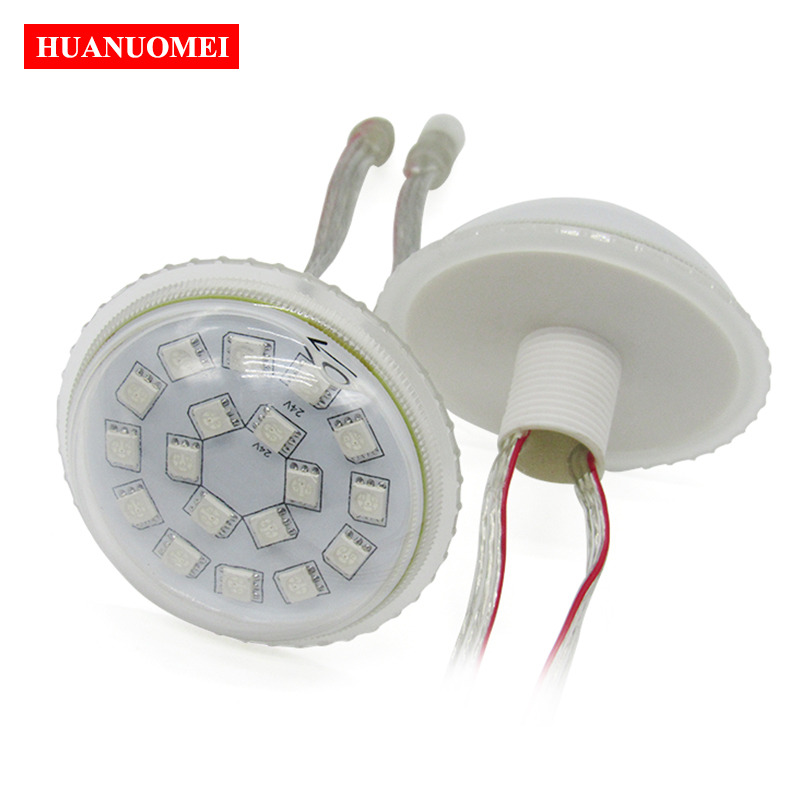

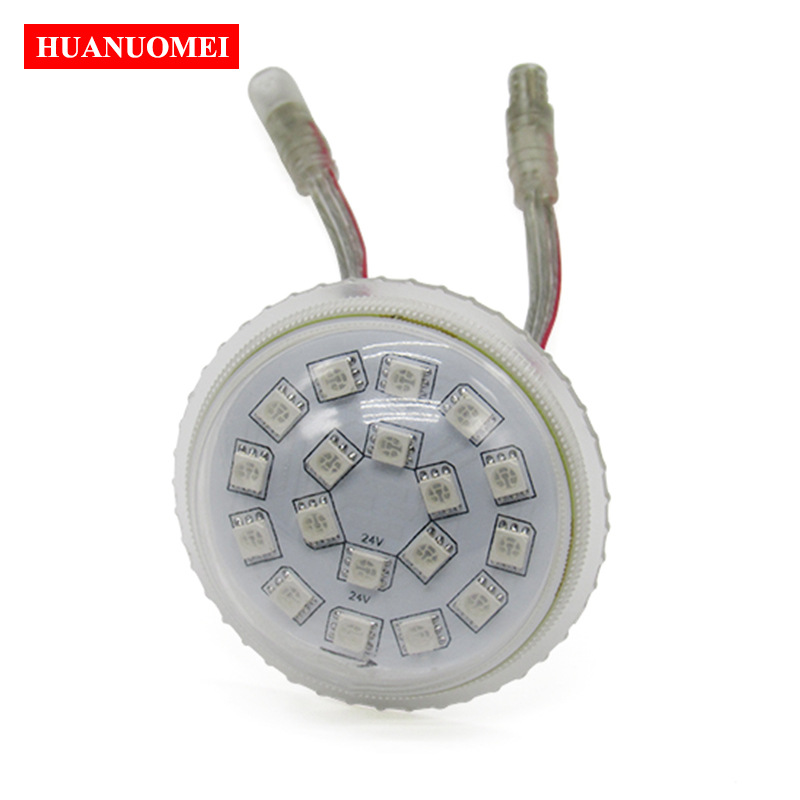

1. 60mm 18leds rgb pixel light is combinated by plastic housing, the PCB board and 3-pins waterproof connector (high temperature-esistant, cold-resistant UV-resistant), 18pcs 5050 RGB SMD LED, 1pcs ucs1903 IC. UCS1903 can use the same led program as WS2811.

2. 60mm 18leds rgb led pixel light is made by epistar chip with high brightness,  low voltage, rich colors, energy conservation & environmental protection, strong stability, long lifespan and little luminous decay.

3. 60mm 18leds rgb led pixel module need work with external led pixel controller, can realize RGB colorful gradient, jump, full color scanning,chasing, running water, heap up and horse racing, scan results, many kind effects. Depending on the installation of different ways,different colors can be changed in the composition of characters,patterns,and other dynamic effects. And also can make a matrix pixel display ,backlights which can show ad picture or play video. These pixel lights can DIY program and effects by led software.

4. This product widely used in building contour, hotels, building floor lighting, KTV entertainment, large shopping malls outside wall, Hotels, Bars, Discos, square street, outdoor AD signs, Logo, interior lighting and other places.

5. This product has the advantages of convenient installation, firm and stable, product unique screw directly twisted up, let the products much more fixed.

6. The products can be cascaded 20PCS , non-super-tandem. Thickness of the power cord should be based on the actual maximum current, the product power, cabling length (recommended no more than 5 meters) and a low pressure drop depending on the transmission line.

Specification:

Product Size:
