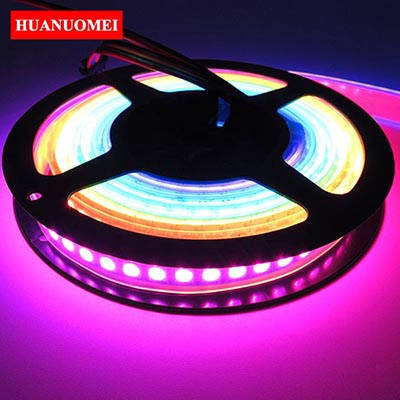

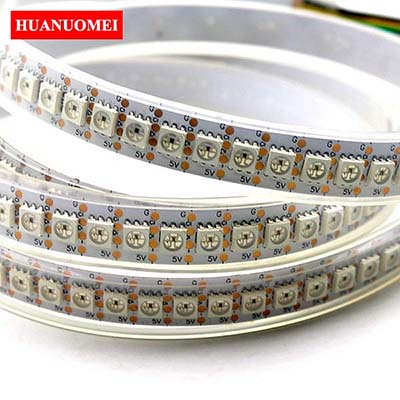

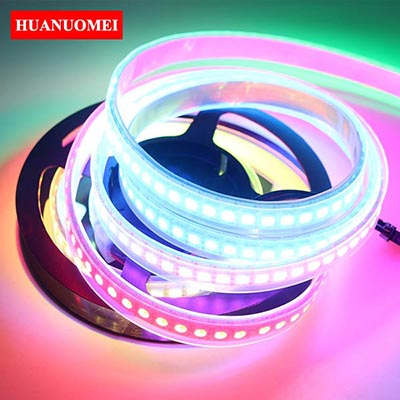

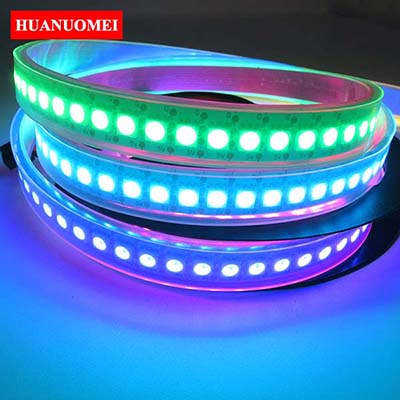

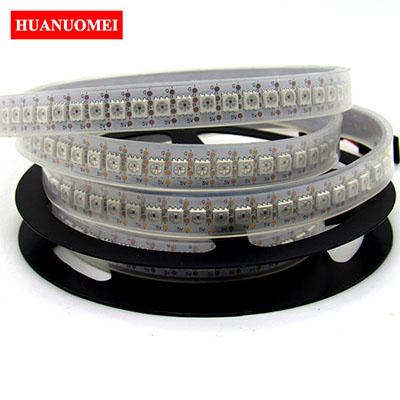

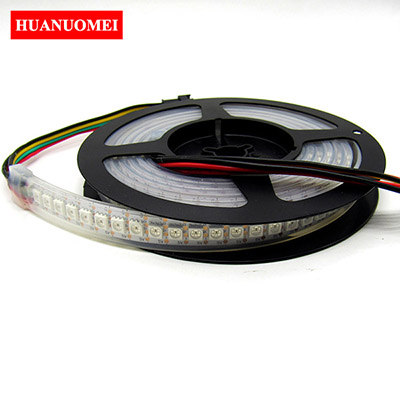

5V 144LEDs/m APA102 LED Strip RGB Pixel Light Individually Addressable Flexible Tape Digital TV Light Waterproof IP67 White PCB

  • Product Item:HNM-APA102-144LED-5V-WT-IP67
  • Category:APA102 LED Strip
  • IC Type: APA102
  • LED QTY: 144LEDs/m
  • Working Voltage: DC5V input
  • Strip Length: 2Meters/Roll
  • Product Manual:2M 144LEDs/m APA102 Digital LED Pixel Strip Light,5050 SMD RGB Flexible Tape 144Pixels/m,DC5V input,White PCB,Waterproof IP67,43.2W/m,Addressable Full Color Strips,Need Work with LED Pixel Controller
BASIC INFO

5V 144LEDs/m APA102 LED Strip RGB Pixel Light Individually Addressable Flexible Tape Digital TV Light Waterproof IP67 White PCB


Specification:

IC Model: APA102 IC chip;
LED Type: 5050 SMD LED;

LED Quantity: 144LEDs/m, 288leds/roll, every LED is cuttable, each LED is separately controlled;

Pixels Qty: 144Pixels/m, 288pixels/roll;

Pitch: 6.94mm(1000/144);

Emitting Color: digital full color RGB, can be adjusted;
Standard Operating Voltage: DC 5V input;

Max Power: 43.2W/m, 86.4W/roll;
IP Grade:waterproof silicon tube IP67;

FPCB color: White PCB;

FPCB board Dimensions: Width:12mm, thickness:2.0mm;

Packing: 2m/roll, anti-static bag packaging;

view angle: 120degree;

Gray Scale: 256;

Warranty: 2years;

Certification: CE & RoHS;

Application:

1) Building decoration
2) Car decoration
3) Amusement park and theater lighting
4) Emergency hallway lighting
5) Shopping mall, restaurant, hotel, meeting room and advertisement lighting and decoration


Advantages:

1. gold supplier, good service and factory competitive price.
2. Good high brightness SMD5050 LED.
3. Low voltage for human safety, energy-saving.
4. Soft and flexible strip, Waterproof, non-waterproof both can do and durable.
5. On any surface can be any shape, of widly applicability, easy to install and maintain.
6. Environmental friendly: Low carbon, no radiation, no flicker, and no harm to human and environment.

7. Cuttable every along the mark, 1led/cut

8. Every individually controlled

9. Can show customized effects

10. Support online control

11. Long lifetime for 50,000hrs

12. CE and RoHS approved

13. 2years warranty
